fantastic - how much power does it use?

On Mon, 25 Apr 2022 at 16:09, ward@planktone.be wrote:

...

I made me a second set as backup for next REVEIL

You can hear it at http://planktone.ddns.net:3000/plankradio

It uses a RASPBERRY ZERO PI and a WK8960 audio board.

This board has 2 MEMS microphones

These are used for the stream

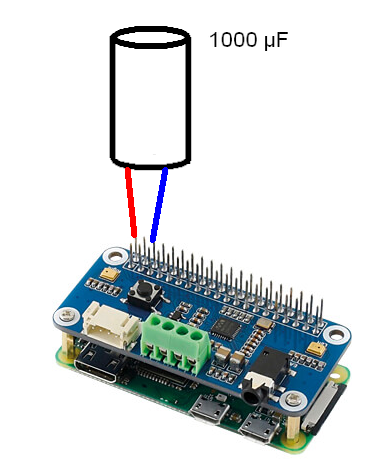

I had only to add an extra 1000µF condenser on the 5V ( pin 1&3 ) to get rid of some annoying soft crackling sound.

The RASP runs an ICECAST server & BUTT to stream, but it can probably use the Locus Sonus image too ?

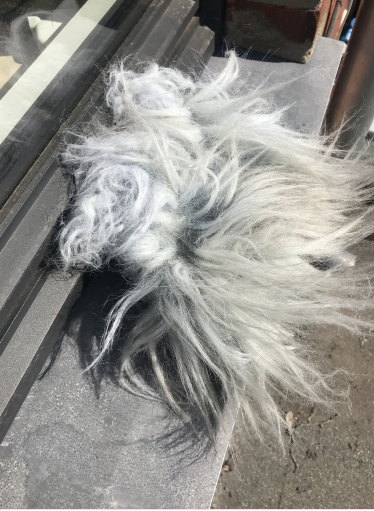

It is now outside on a window in a fur to protect it from wind as test.

[image: Afbeelding met hond, buiten, zoogdier Automatisch gegenereerde beschrijving]

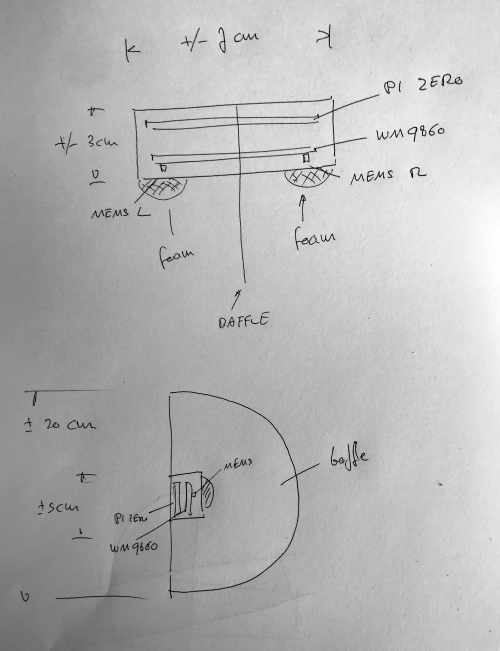

I like to add a baffle between the mic’s to get a wider stereo image as the microphones are only 6 cm from each other.

I add a design I have in mind.

It could be a 3D printing project … but I don’t have the tools and experience for that.

But … it’s a fast and easy way to stream something good in my opinion.

Curious about your thoughts …

Grtz,

W.

---
