By the way, I’m giving up on the audio injector card. It’s ridiculously noisy for streaming, even with the card mounted by ribbon cable. For the sameish price this IQaudio card seems very good.

Aidan

On 29 Apr 2020, at 22:32, udo noll un@aporee.org wrote:

Patrick Perdue:

Sounds good. How do you have your M172's mounted? Are you just doing a spaced pair, or do you have a baffle between the mics?

no, they're just hanging out of the window, at a distance of about 40cm. It's not a permanent setup, just for testing. works stable now for a few hours. pretty small and sounds nice. that pi zero performs fine. --u

...

On 4/29/2020 4:13 PM, udo noll wrote: dear list/eners,

my pi zero has arrived this afternoon, couldn't await to test it... first impressions: http://radio.aporee.org:8000/live.m3u

_______________________________________________ Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

hi Raphael,

do you mean a conenction setup for locusonus? I havn't one yet for darkice, but shouldn't be difficult. can you post your one to check (w/o passwords...) I'm away from my pi zero until tomorrow bests, udo

Hi Udo & list, Thank you for that! Since my Audioinjector-ultra doesn't work on Streambox, but is ok on Raspbian, I'm trying to stream with darkice. After many attempts I think the card is recognized (device = hw0), but there are connection issues. I tried many combinations in server connection fields. Can you share your darkice.cfg?

thank you!

raphael raccuia

Le 29.04.20 à 22:13, udo noll a écrit :

...

dear list/eners,

my pi zero has arrived this afternoon, couldn't await to test it... first impressions: http://radio.aporee.org:8000/live.m3u

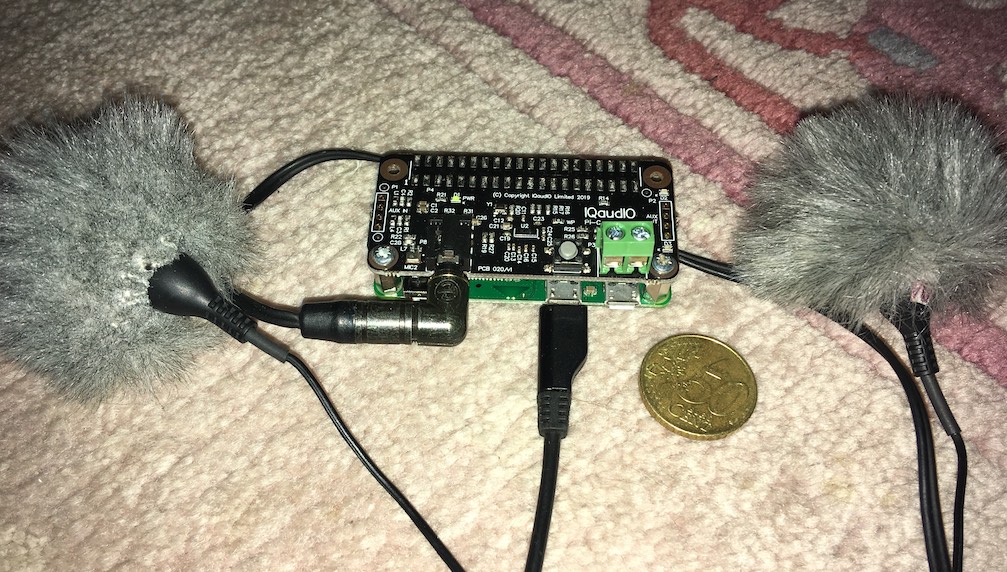

hardware:

• Raspberry Pi Zero WH (https://www.raspberrypi.org/blog/zero-wh/)
• IQAudio Codec Zero (http://iqaudio.co.uk/hats/101-pi-codeczero.html)
• a pair of Primo EM172 electret condenser mics

software:

Raspbian GNU/Linux 10 (buster) Linux raspi0 4.19.97+ #1294 Thu Jan 30 13:10:54 GMT 2020 armv6l GNU/Linux DarkIce 1.3 live audio streamer

disable onboard audio:

https://www.instructables.com/id/Disable-the-Built-in-Sound-Card-of-Raspberr...

check if IQAudio card is recognized:

arecord -l: **** List of CAPTURE Hardware Devices **** card 1: IQaudIOCODEC [IQaudIOCODEC], device 0: IQaudIO CODEC HiFi v1.2 da7213-hifi-0 [IQaudIO CODEC HiFi v1.2 da7213-hifi-0] Subdevices: 1/1 Subdevice #0: subdevice #0

relevant [input] section in /etc/darkice.cfg:

[input] device = hw:IQaudIOCODEC sampleRate = 44100 bitsPerSample = 16 channel = 2

bests, Udo

-- radio aporee 52° 29' 66" N, 13° 25' 26" E ::: maps https://aporee.org/maps/ ::: stream http://radio.aporee.org ::: field radio https://aporee.org/fieldradio ::: miniatures for mobiles https://aporee.org/mfm/

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

I'm online! I feel like I've just cross a desert: After trying all options in darkice.cfg, I decided to try with Pd patch _simple_locustream.pd_, which doesn't work for any reason. But opening subpatches to fix it, I noticed the autoconfig url, which gave me /locusonus1/ as password (?!?). I was trying with my own account password. Do I have to change it anywhere? So for the next one here is a working darkice.cfg. Respect syntax (server whithout http://, mount point without /, etc):

[general] duration = 0 bufferSecs = 5 reconnect = yes

[input] device = hw:audioinjectorul sampleRate = 48000 bitsPerSample = 16 channel = 2

[icecast2-0] bitrateMode = cbr format = vorbis bitrate = 256 quality = 0.8 server = locus.creacast.com port = 9001 mountPoint = mobile_phonotope.ogg password = pwd name = phonotope mobile stream description = Inside a birdhouse url = http://locus.creacast.com:9001/mobile_phonotope.mp3 genre = soundscape public = yes

rph-r

Le 30.04.20 à 15:41, Raphael Raccuia a écrit :

Hi, thank you! here is mine. I solved most of the errors, but on each step there is a new one. Darkice errors are not very explicit, and don't obviously refer to the guilty line. Now I get: DarkIce: IceCast2.cpp:250: Icecast2 - wrong password [0] but it's correct, and the error is the same for any value in mountPoint.

[general] duration = 0 bufferSecs = 5 reconnect = yes

[input] device = hw:audioinjectorul sampleRate = 48000 bitsPerSample = 16 channel = 2

[icecast2-0] bitrateMode = cbr format = mp3 bitrate = 192 quality = 0.6 server = locus.creacast.com port = 9001 password = pwdWithCapsAndNumbers123 mountPoint = mobile_phonotope.mp3 name = mobile phonotope description = mobile_phonotope url = http://locus.creacast.com:9001/mobile_phonotope.mp3 genre = field recording public = yes

rph-r

Le 30.04.20 à 15:26, udo noll a écrit :

...

hi Raphael,

do you mean a conenction setup for locusonus? I havn't one yet for darkice, but shouldn't be difficult. can you post your one to check (w/o passwords...) I'm away from my pi zero until tomorrow bests, udo

...

Hi Udo & list, Thank you for that! Since my Audioinjector-ultra doesn't work on Streambox, but is ok on Raspbian, I'm trying to stream with darkice. After many attempts I think the card is recognized (device = hw0), but there are connection issues. I tried many combinations in server connection fields. Can you share your darkice.cfg?

thank you!

raphael raccuia

Le 29.04.20 à 22:13, udo noll a écrit :

...

dear list/eners,

my pi zero has arrived this afternoon, couldn't await to test it... first impressions: http://radio.aporee.org:8000/live.m3u

hardware:

• Raspberry Pi Zero WH (https://www.raspberrypi.org/blog/zero-wh/)
• IQAudio Codec Zero (http://iqaudio.co.uk/hats/101-pi-codeczero.html)
• a pair of Primo EM172 electret condenser mics

software:

Raspbian GNU/Linux 10 (buster) Linux raspi0 4.19.97+ #1294 Thu Jan 30 13:10:54 GMT 2020 armv6l GNU/Linux DarkIce 1.3 live audio streamer

disable onboard audio:

https://www.instructables.com/id/Disable-the-Built-in-Sound-Card-of-Raspberr...

check if IQAudio card is recognized:

arecord -l: **** List of CAPTURE Hardware Devices **** card 1: IQaudIOCODEC [IQaudIOCODEC], device 0: IQaudIO CODEC HiFi v1.2 da7213-hifi-0 [IQaudIO CODEC HiFi v1.2 da7213-hifi-0]     Subdevices: 1/1     Subdevice #0: subdevice #0

relevant [input] section in /etc/darkice.cfg:

[input] device          = hw:IQaudIOCODEC sampleRate      = 44100 bitsPerSample   = 16 channel         = 2

bests, Udo

-- radio aporee 52° 29' 66" N, 13° 25' 26" E     ::: maps https://aporee.org/maps/     ::: stream http://radio.aporee.org     ::: field radio https://aporee.org/fieldradio     ::: miniatures for mobiles https://aporee.org/mfm/

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to     locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

hi Ciara,

in alsamixer, try to play with these settings:

Mixin Right Mic 1 Mixin Left Mic 1

that routes Mic1 to L/R (should, if I remember well)

bests, udo

Ciara Drew:

hello all,

I've been quietly watching this thread and I now have a IQAudio card runnning through an A+, so thank you! Although it seems to only be coming out the left channel - I am using a mono 172 capusle so I probably have to tell it that...

http://locus.creacast.com:9001/wakefield_scissett_slag_heap.ogg heres the link if anyone would like to listen - will be transfering the stream to an old mining slagheap this evening for Reveil.

Best,

Ciara

On 29/04/2020 21:13, udo noll wrote:

...

dear list/eners,

my pi zero has arrived this afternoon, couldn't await to test it... first impressions: http://radio.aporee.org:8000/live.m3u

hardware:

• Raspberry Pi Zero WH (https://www.raspberrypi.org/blog/zero-wh/)
• IQAudio Codec Zero (http://iqaudio.co.uk/hats/101-pi-codeczero.html)
• a pair of Primo EM172 electret condenser mics

software:

Raspbian GNU/Linux 10 (buster) Linux raspi0 4.19.97+ #1294 Thu Jan 30 13:10:54 GMT 2020 armv6l GNU/Linux DarkIce 1.3 live audio streamer

disable onboard audio:

https://www.instructables.com/id/Disable-the-Built-in-Sound-Card-of-Raspberr...

check if IQAudio card is recognized:

arecord -l: **** List of CAPTURE Hardware Devices **** card 1: IQaudIOCODEC [IQaudIOCODEC], device 0: IQaudIO CODEC HiFi v1.2 da7213-hifi-0 [IQaudIO CODEC HiFi v1.2 da7213-hifi-0] Subdevices: 1/1 Subdevice #0: subdevice #0

relevant [input] section in /etc/darkice.cfg:

[input] device = hw:IQaudIOCODEC sampleRate = 44100 bitsPerSample = 16 channel = 2

bests, Udo

-- radio aporee 52° 29' 66" N, 13° 25' 26" E ::: maps https://aporee.org/maps/ ::: stream http://radio.aporee.org ::: field radio https://aporee.org/fieldradio ::: miniatures for mobiles https://aporee.org/mfm/

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

---

Locustream / Locus Sonus Streaming Project http://locusonus.org/ To unsubscribe, send a message to locustream-request@nujus.net with unsubscribe in the subject or the message http://nujus.net/cgi-bin/mailman/listinfo/locustream _______________________________________________

55 hours and still broadcasting ;) battery is a Intenso 15000mAh type.

udo noll:

testing continues... now it's running over 32h connected to a USB battery, nice.

the iq has a button onboard which can be programmed freely with some python scripting. Eg you could do a reboot, shutdown or start streaming...

tune in to some nice berlin backyard ambience, until power goes down ;)

udo noll:

...

dear list/eners,

my pi zero has arrived this afternoon, couldn't await to test it... first impressions: http://radio.aporee.org:8000/live.m3u

hardware:

• Raspberry Pi Zero WH (https://www.raspberrypi.org/blog/zero-wh/)
• IQAudio Codec Zero (http://iqaudio.co.uk/hats/101-pi-codeczero.html)
• a pair of Primo EM172 electret condenser mics

software:

Raspbian GNU/Linux 10 (buster) Linux raspi0 4.19.97+ #1294 Thu Jan 30 13:10:54 GMT 2020 armv6l GNU/Linux DarkIce 1.3 live audio streamer

disable onboard audio:

https://www.instructables.com/id/Disable-the-Built-in-Sound-Card-of-Raspberr...

check if IQAudio card is recognized:

arecord -l: **** List of CAPTURE Hardware Devices **** card 1: IQaudIOCODEC [IQaudIOCODEC], device 0: IQaudIO CODEC HiFi v1.2 da7213-hifi-0 [IQaudIO CODEC HiFi v1.2 da7213-hifi-0] Subdevices: 1/1 Subdevice #0: subdevice #0

relevant [input] section in /etc/darkice.cfg:

[input] device = hw:IQaudIOCODEC sampleRate = 44100 bitsPerSample = 16 channel = 2

bests, Udo

-- radio aporee 52° 29' 66" N, 13° 25' 26" E ::: maps https://aporee.org/maps/ ::: stream http://radio.aporee.org ::: field radio https://aporee.org/fieldradio ::: miniatures for mobiles https://aporee.org/mfm/
